W70Cu30 Alloy Electrode Wheel For PCD Tools

Brand Name : JX

Model Number : W70Cu30

Certification : ISO9001

Place of Origin : CHINA

Delivery Time : 25 Days

Thermal Expansion Coefficient : 6.5-7.5 x 10^-6/K

Technique : infiltering process

Packing : standard exporting

Outer Diameter : 30mm-300mm

Oem : Acceptable

Working Temperature : 1800~2600

Export Port : Any port in China

Electrical Conductivity : 27% IACS

Surface : Polishing

Applciation : PCD.EDM

Contact Now

W70Cu30 Alloy Electrode Wheel For PCD Tools

Features & Description

W70Cu30 Alloy Electrode Wheel For PCD Tools Is another tungsten copper electrode material with very superior performance compared with the rod electrode, which has all the excellent characteristics of tungsten and copper, such as high temperature strength, high melting point, strong erosion resistance, good conductive thermal conductivity, fast heat dissipation, small contact surface damage, stable tissue structure, long service life and high cost performance. The W70Cu30 Alloy Electrode Wheel For PCD Tools is mainly used in electric spark processing and seam welding machine, the purpose is to repair the worn parts (PCD tools) in practical application, and can withstand continuous discharge processing, which not only maintains the welding quality and precision, but also improves the processing rate of the equipment. W70Cu30 Alloy Electrode Wheel For PCD Tools It is very suitable for continuous welding operations at the junction of sheet metal, and can also be used to weld key high temperature resistant and durable components needed in chemical, military, aviation, shipbuilding, construction and other fields.

Specifications:

Grade	W70Cu30
Technique	Sintering,Annealing,Rolling,HIP,Machining,Injection Molding process
Outer Diameter	125-175mm
Thickness	5-10mm
Height	20-60mm
Hardness	85-100HRB
Density	14.1-15.3g/cm³
Surface	Polished,Bright,Chemical Cleaning,Black Oxide,etc.
Shape	Round
Standard	ASTM B702,GB,JIS
Certification	ISO9001

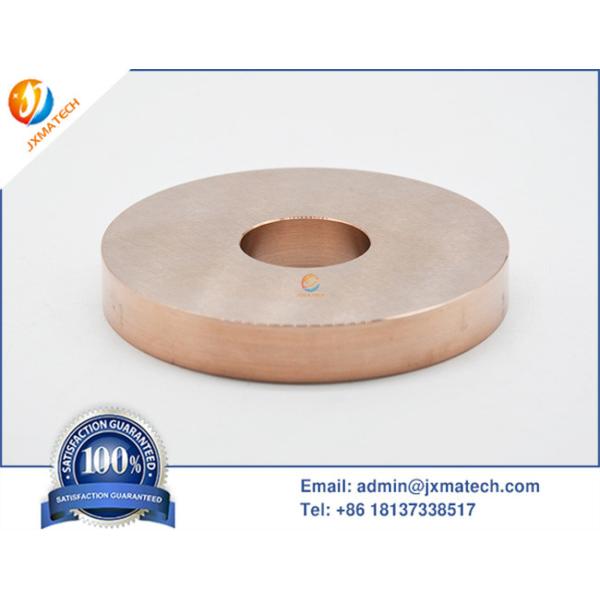

W70Cu30 Alloy Electrode Wheel For PCD Tools Pictures

W70Cu30 Alloy Electrode Wheel For PCD Tools Images
